藻類群落結構掃描成像分析系統—浮標版CytoBuoy
日期:2017-03-27 14:21:35
主要功能




1. 專業分析浮游植物細胞,同時具備傳統流式細胞儀經典功能1.jpg
2. 可以掃描記錄各種光學信號(散射、熒光)的動態變化
3. 可實現高頻、原位分析水體微生物群落及優勢種變化
4. 可在完整的藻類粒徑譜范圍內對生物量進行線性評估
5. 可直接分析大尺寸范圍的浮游藻類、團體結構,可現場分析微囊藻群體結構變化
6. 可調式PMT可根據檢測粒徑大小調節檢測器靈敏度
7. 流動成像技術可對感興趣感興趣的聚群進行圈門設定后專門拍照
8. 脈沖信號指紋圖譜技術,圈門直觀方便,更真實反應細胞形態
9. 水下測量(CytoSub)可在整個真光層分析浮游植物動態
10. 可整合入浮標中或其它載體上進行在線監測,可配合CTD對水體做剖面測量
11.實現實驗室遠程控制基站式自動在線監測,可實現完全自動檢測,無人值守在線監測






測量參數




光學參數:      前向散射FWS、側向散射SWS,熒光散射FLR、 FLY、 FLO
形態參數:      能同時獲得包括細胞和顆粒形態物理特性(數量、長度、大小、形態、粒度、色素、峰數等)、群體特征、脈沖圖譜等在內的9個拓?fù)鋵W(xué)指標及最少45組參數
絕對計數:自然水體總顆粒計數,圈門后可集群計數及濃度計算,可實現鏈狀藻單細胞數計數功能
其他測量參數:分析體積、進樣速率等






應用領域




1. 海洋生態學與淡水生態學


2. 流域監測與管理


3. 海洋學與湖沼學


4. 有害藻華(HABs)預警


5. 微藻生物技術


6. 河流、水庫、湖泊、海洋的監測與管理


7. 監測與管理


8. 水源地、水廠、污水處理廠的水質監測


9. 富營養化研究


10. 藻類環境生物學


11. 水產養殖








選購指南:




一、便攜式浮游植物流式細胞儀CytoSense

系統組成:



流式細胞儀分析主機:相干高質量連續固態激光器,標配波長488nm, 可選波長445nm、635nm、640nm、660nm等最多可配置7個檢測器(檢測通道含F(xiàn)WS L+R、SWS、YF、RF、OF)。
野外便攜式外殼:儀器采用碳素纖維外殼,防濺水設計,更輕便(<15kg),整機安裝于輕質鋁質框,帶高質量防震墊。包裝于便攜式航空箱內。
數據分析系統:含便攜式筆記本電腦,預裝數據采集軟件CytoUSB,和數據分析軟件CytoClus
批量處理數據分析軟件EasyClus : 需購買MatLab軟件配合使用
高速流動成像模塊:可選。

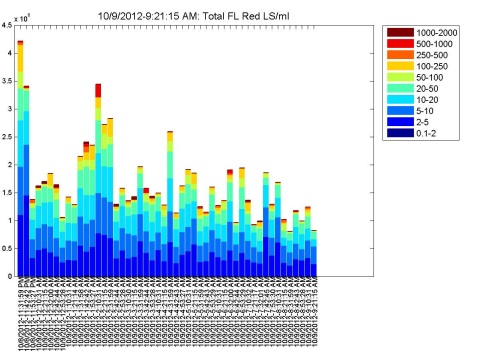

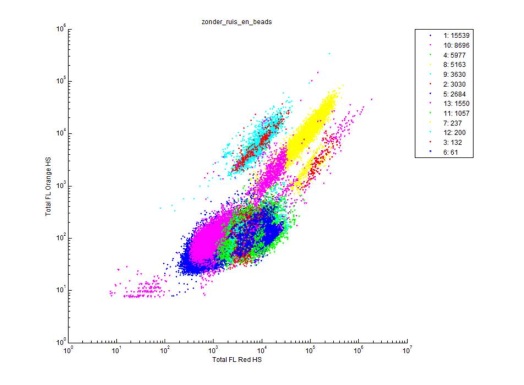

      便攜式浮游植物流式細胞儀                   Easyclus 粒徑分布圖                      Easyclus 散點圖
系統組成:



主機:淺水版Cytosub (水下20米),含CytoSense所有基本配置

浮標模塊:包括浮標、太陽能電池板、充電電池、浮標燈、電子系統、無線傳輸裝置和采樣管防水連接器等。根據用戶需要,也可擴展為易拆卸浮標模塊,這樣用戶可以非常方便的在CytoSense(室內用)和CytoBuoy(在線監測)間轉換。
注意:野外在線監測時不僅僅限于以浮標作為平臺,其他平臺也可,只要可以具備放置CytoSense的空間及供電即可。同時,增加Bacterial staining module,可實現水體異養微生物自動染色和在線分析,可在線檢測藻類、細菌、浮游動物及沉積物等顆粒。具體信息請來電咨詢。

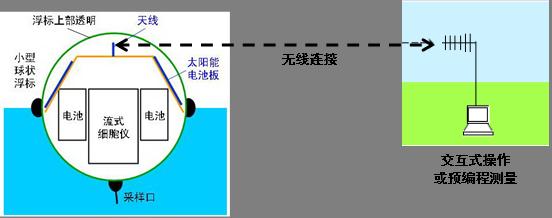

                       CytoBuoy 浮體

CytoBuoy通訊模式:無線通訊







三、水下浮游植物流式細胞儀——CytoSub


主機:臺式機CytoSense是防濺水設計,可以在野外使用,但不能水下使用。CytoSense加上一個水下模塊(SUB MODULE)就組成了水下式流式細胞儀CytoSub。
水下模塊:一個耐受200 m水深壓力的防水外殼,閥門和進樣環路部分(包括循環泵),電子控制單元,數采,水下連接器和支架。

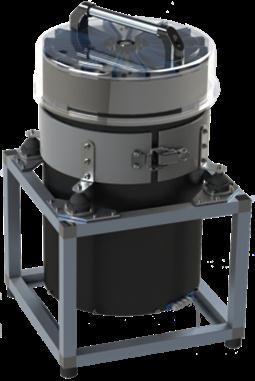

cytosub 主機.jpg7.jpg





               Cytosub 主機                         CytoSense CytoSub 轉換
工作模式一:AUV搭載

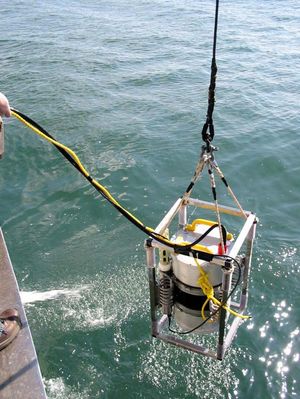

利用英國國家海洋中心AutoSubAUV搭載CytoSub

工作模式二:水下垂直剖面分析











                             與CTD結合一起測量

注意:此外,水下型浮游植物流式細胞儀CytoSub可應用于浮標,Ferrybox等監測平臺,在垂直剖面不同層位獲取浮游植物生物量信息,對研究微囊藻沉浮機制,浮游動物、水文、水質等因素對浮游植物生態位影響提供數據依據。

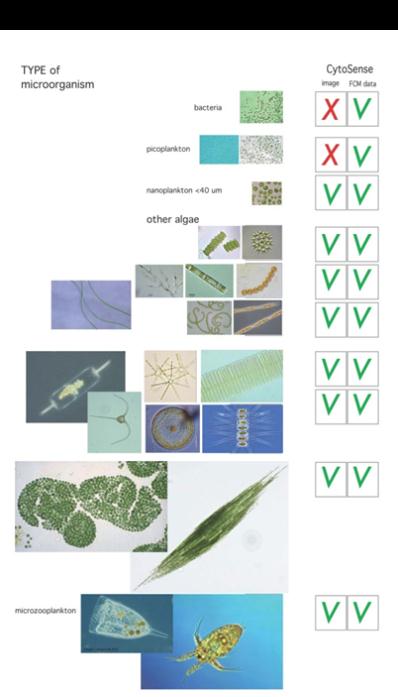

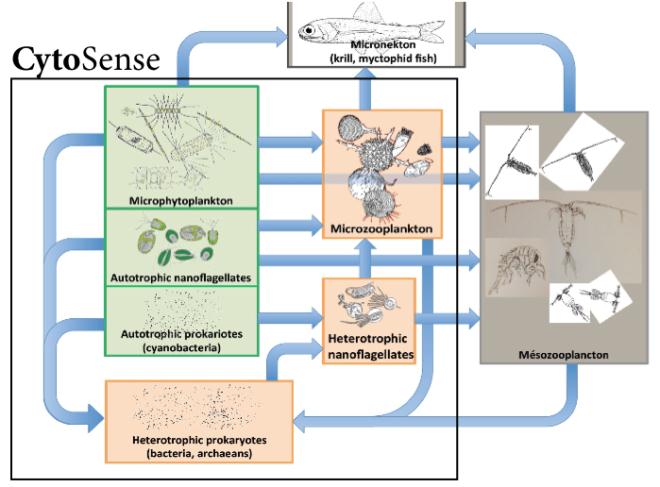

                           CytoSense 檢測對象

產地:荷蘭 CytoBuoy



參考文獻
數據來源: Cytometry ,  Goolge scholar等,截至2016年,共收集相關文獻近100篇。

1.       Simon Bonato a, Elsa Breton , al e: Spatio-temporal patterns in phytoplankton assemblages ininshore–offshore gradients using flow cytometry: A case study in the eastern English Channel, Journal of Marine Systems 2016,76-83.[CytoSense]

2.       Goran Bakalar & Vinko Tomas, Possibility of Using Flow Cytometry in the Treated Ballast Water Quality Detection, Pomorski zbornik 51 (2016), 43-55

3.       Quan Zhou, Wei Chen, al e: A flow cytometer based protocol for quantitative analysis of bloom-forming cyanobacteria (Microcystis) in lake sediments, Journal of Environmental Sciences 2012, 24(9) 1709–1716

4.       A. Mansour, I. Leblond al.e: Invited Paper: Wireless Sensor Networks for Ecosystem Monitoring & Port Surveillance. (WSCN 2013)

5.       Endymion D. Cooper , Bastian Bentlage al e: Metatranscriptome profiling of a harmful algal bloom.Harmful Algea 37(2014)75-83.

6.       SERGIO A. COELHO-SOUZA, FáBIO V. ARAúJO al e: Bacterial and Archaeal Communities Variability Associated with Upwelling and Anthropogenic Pressures in the Protection Area of Arraial do Cabo (Cabo Frio region - RJ). Anais da Academia Brasileira de Ciências (2015) 87(3):1737-1750

7.    Malkassian, A., D. Nerini, al. e: Functional analysis and classification of phytoplankton based on data from an automated flow cytometer. Cytometry Part A 2011, 94A:263-275.  [Cytosense]

8.    Thyssen, M., B. Beker, al. e: Phytoplankton distribution during two contrasted summers in a Mediterranean harbour: combining automated submersible flow cytometry with conventional techniques. Environmental Monitoring and Assessment 2011, 173:1-16.

9.    Thyssen, M., Denis M: Temporal and Spatial High-Frequency Monitoring of Phytoplankton by Automated Flow Cytometry and Pulse-Shape Analysis. Springer Netherlands 2011:293-298.

10.   Vidoudez, C., J. C. Nejstgaard, al. e: Dynamics of Dissolved and Particulate Polyunsaturated Aldehydes in Mesocosms Inoculated with Different Densities of the Diatom Skeletonema marinoi. Marine Drugs 2011, 9: 345-358.

11.   Hansen, B. W., H. H. Jakobsen, al. e: Swimming behavior and prey retention of the polychaete larvae Polydora ciliata. Journal of Experimental Biology 2010:3237-3246.

12.   Pereira GC, Figuiredo ARd, Jabor PM, Ebecken1 NFF: Assessing the ecological status of plankton in Anjos Bay: a flowcytometry approach. Biogeosciences Discuss 2010, 7:6243–6264.  [cytobuoy]

13.   Barofsky, A., Simonelli P, al e: Growth phase of the diatom Skeletonema marinoi influences the metabolic profile of the cells and the selective feeding of the copepod Calanus spp. J Plankton Res 2009, 32:263-272.  [CytoBuoy]

14.   Donk V, E., Cerbin S, al e: The effect of a mixotrophic chrysophyte on toxic and colony-forming cyanobacteria. Freshwater Biology 2009, 54:1843-1855.

15.   Pereira, C. G, Granato A, al. e: Virioplankton Abundance in Trophic Gradients of an Upwelling Field. Brazilian Journal of Microbiology 2009, 40:857-865.  [CytoBuoy]

16.   Thyssen, M., Mathieu D, al. e: Short-term variation of phytoplankton assemblages in Mediterranean coastal waters recorded with an automated submerged flow cytometer. J Plankton Res 2008, 30:1027-1040.  [Cytosub]

17.   Thyssen, T. M, Garcia N, al. e: Sub meso scale phytoplankton distribution in the north east Atlantic surface waters determined with an automated flow cytometer. Biogeosciences Discuss 2008, 5:2471-2503.  [Cytosub]

18.   Dubelaar, J. GB, Casotti R, al. e: Phytoplankton and their analysis by flow cytometry. Flow Cytometry with Plant Cells 2007:287-322.  [CytoBuoy]

19.   Takabayashi, M., Lew K, al e: The effect of nutrient availability and temperature on chain length of the diatom, Skeletonema costatum. J Plankton Res 2006, 28:831-840.  [CytoSense]

20.   Takabayashi, M., Wilkerson FP, al. e: Response Of Glutamine Synthetase Gene Transcription And Enzyme Activity To External Nitrogen Sources In The Diatom Skeletonema Costatum (Bacillariophyceae). J Phycol 2005, 41:84-94.  [Cytobuoy]

21.   Dubelaar, J. GB, Geerders PJF: Innovative technologies to monitor plankton dynamics. Sea Technol 2004, 45:15-21.  [CytoSub]

22.   Dubelaar, J. GB, Geerders PJF, al. e: High frequency monitoring reveals phytoplankton dynamics. J Environ Monit 2004, 6:946-952.  [Cytosense]

23    Cunninghama, A., McKeea D, al e: Fine-scale variability in phytoplankton community structure and inherent optical properties measured from an autonomous underwater vehicle. J Mar Syst 2003, 43:51-59.

24.   Dubelaar, J. GB, Gerritzen PL: CytoBuoy: a step forward towards using flow cytometry in operational oceanography. Sci Mar (Barc) 2000, 64:255-265.  [CytoBuoy]

25.   Dubelaar, J. GB, Jonker RR: Flow cytometry as a tool for the study of phytoplankton. Scientia Marina 2000, 64.  [CytoBuoy]

26.   Jonker R, Droben R, Tarran G, Medlin L, Wilkins M, Garcla L, zabala L, boddy l: Automated identification and characterisation of microbial populations using flow  cytometry: the AIMS project. scientia marina 2000, 64:225-234.  [Cyto]

27.   Woodd-Walker, S. R, Gallienne CP, al e: A test model for optical plankton counter (OPC) coincidence and a comparison of OPC-derived and conventional measures of plankton abundance. J Plankton Res 2000, 22:473-483.

28.   Dubelaar, J. GB, Gerritzen PL, al e: Design and first results of CytoBuoy: A wireless flow cytometer for in situ analysis of marine and fresh waters. Cytometry 1999, 37:247-254.  [CytoBuoy]

29.   Wilkins, F. M, Boddy L, al e: Identification of Phytoplankton from Flow Cytometry Data by Using Radial Basis Function Neural Networks." Appl Environ Microbiol 1999, 65:4404-4410.

30.   Jonker, R. R, Meulemans JT, al e: Flow cytometry: A powerful tool in analysis of biomass distributions in phytoplankton. Water SciTechnol 1995, 32:177-182.  [Cytosense]

31.   Jonker, R. R, G. B. J. Dubelaar, al. e: The European Optical Plankton Analyser: A high dynamic range flow cytometer. Scientia Marina 1994.

32.   Dubelaar, G. B. J., A. Groenewegen ea: Optical plankton analyser: a flow cytometer for plankton analysis, II: Specifications. Cytometry 1989, 10:529-539.  [OPA]

       33.   Peeters, J. C. H., G. B. J. Dubelaar, al e: Optical plankton analyser: A flow cytometer for plankton analysis, I: Design considerations. Cytometry 1989, 10:522-528.  [OPA]
