主要功能
可測熒光誘導曲線的快速上升動力學 O-I-D-P 相和 O-J-I-P 相。
可測熒光誘導曲線的慢速下降動力學并進行淬滅分析(Fo、Fm、F、Fo’、Fm’、Fv/Fm、Y(II) 即 ΔF/Fm’、qL、qP、qN、NPQ、Y(NPQ)、Y(NO)、ETR、C/Fo、PAR 和葉溫等)
可測光響應曲線和快速光曲線(RLC)。
具有ST & MT單周轉和多周轉飽和閃光功能,可用于QA及PQ庫的精細還原,準確獲取熒光最大I1相(I1-max),QA-到QB的電子傳遞,放氧復合體S-態研究,PSII電荷分離研究,圍繞PSII的環式電子傳遞以及預閃光效應等領域的研究。
可在線檢測植物、微藻、地衣、苔蘚等的光合作用變化。
操作功能強大,特別適合野外操作,野外操作也使用 Windows 系統。
測量參數
Fo、Fm、F、Fo’、Fm’、Fv/Fm、Y(II) 即 ΔF/Fm’、qL、qP、qN、NPQ、Y(NPQ)、Y(NO)、ETR、C/Fo、PAR 和葉溫等
應用領域
植物生理學,植物生態學,作物抗逆性,植物脅迫生理學,環境科學,水生生物學與海洋生物學,微藻生物技術,生態毒理學,園藝學,農業科學,林學等
主要技術參數
測量光:紅色 LED,調制頻率多檔可選。
光化光:藍光 LED,最大連續光強 800 μmol m-2 s-1;紅光 LED,最大連續光強 4000 μmol m-2 s-1。
遠紅光:LED,750 nm。
飽和脈沖:紅色 LED,最大飽和閃光強度 25 000 μmol m-2 s-1。
單周轉/多周轉飽和閃光:紅色 LED,飽和閃光強度 125000/25000 μmol m-2 s-1。
選購指南

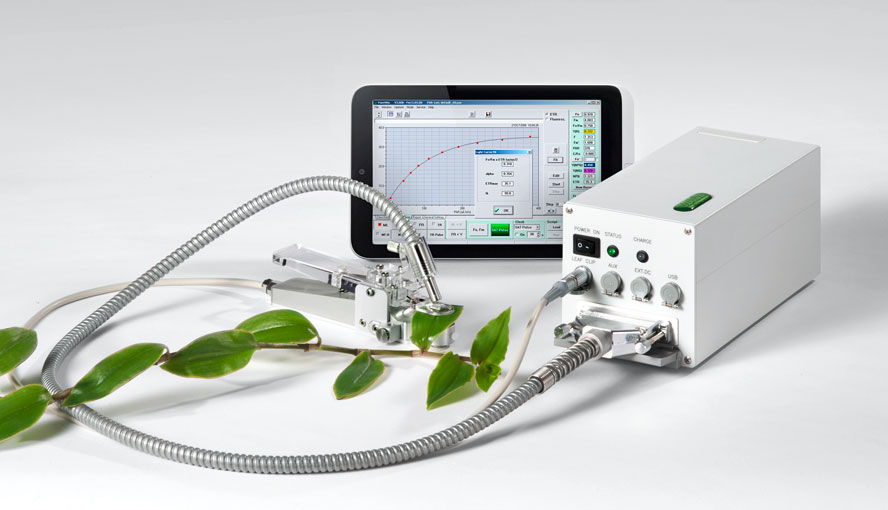

一、高等植物葉片測量基本款
系統組成:通用主機,光纖,光適應葉夾,暗適應葉夾,軟件等
注意:PAM-2500 通用型主機光化光既有紅光也有藍光。
高等植物葉片測量基本款 |

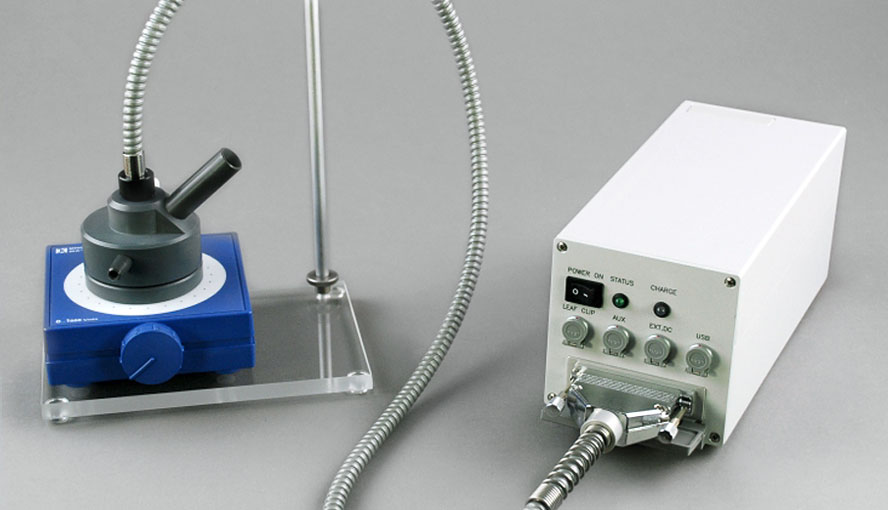

二、懸浮樣品測量基本款
系統組成:通用型主機,光纖,懸浮樣品室,磁力攪拌器,光纖等
注意:PAM-2500 通用型主機光化光既有紅光也有藍光,適用于不同樣品測量
懸浮樣品測量基本款 |

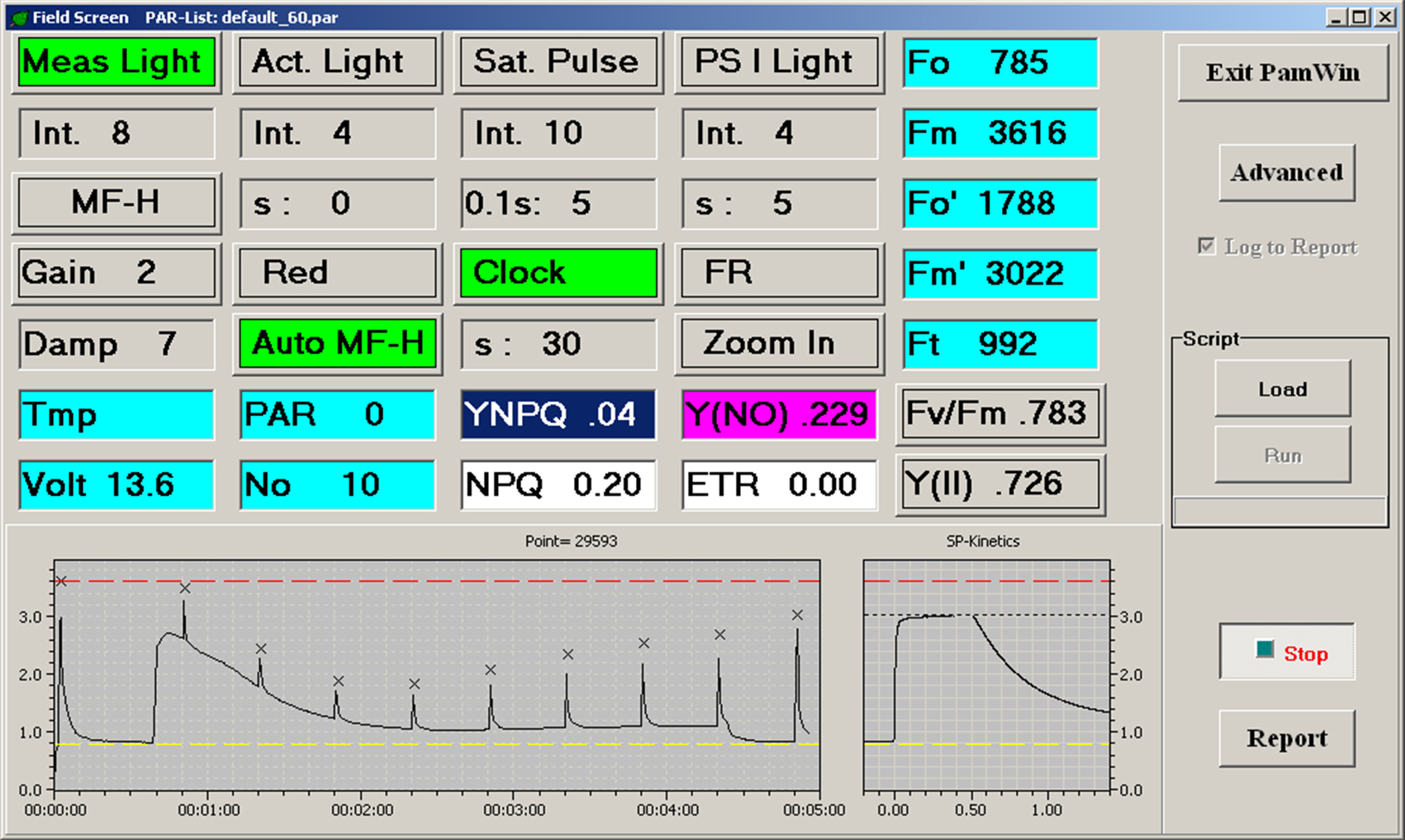

野外簡潔操作界面 | 高級測量顯示界面 |

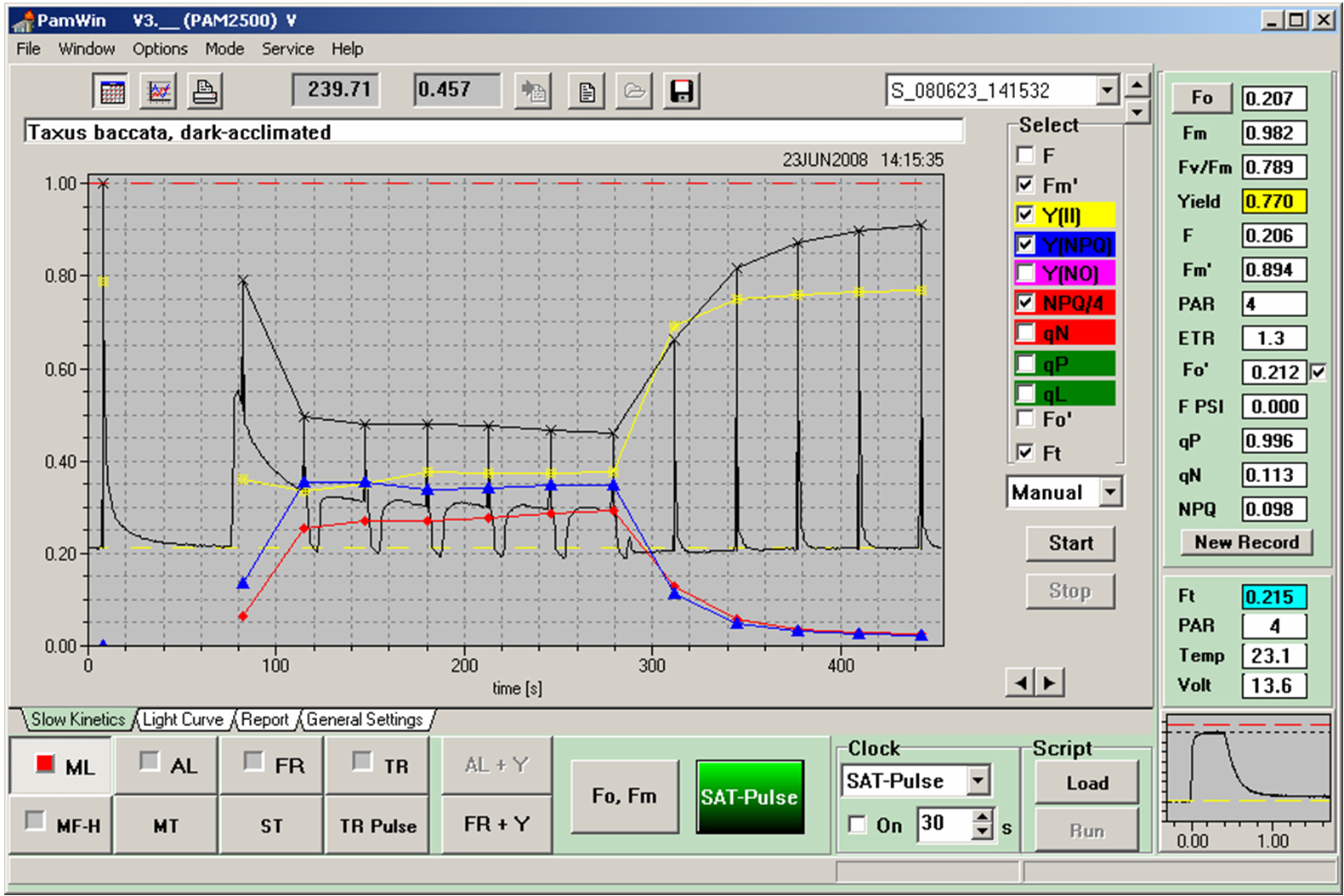

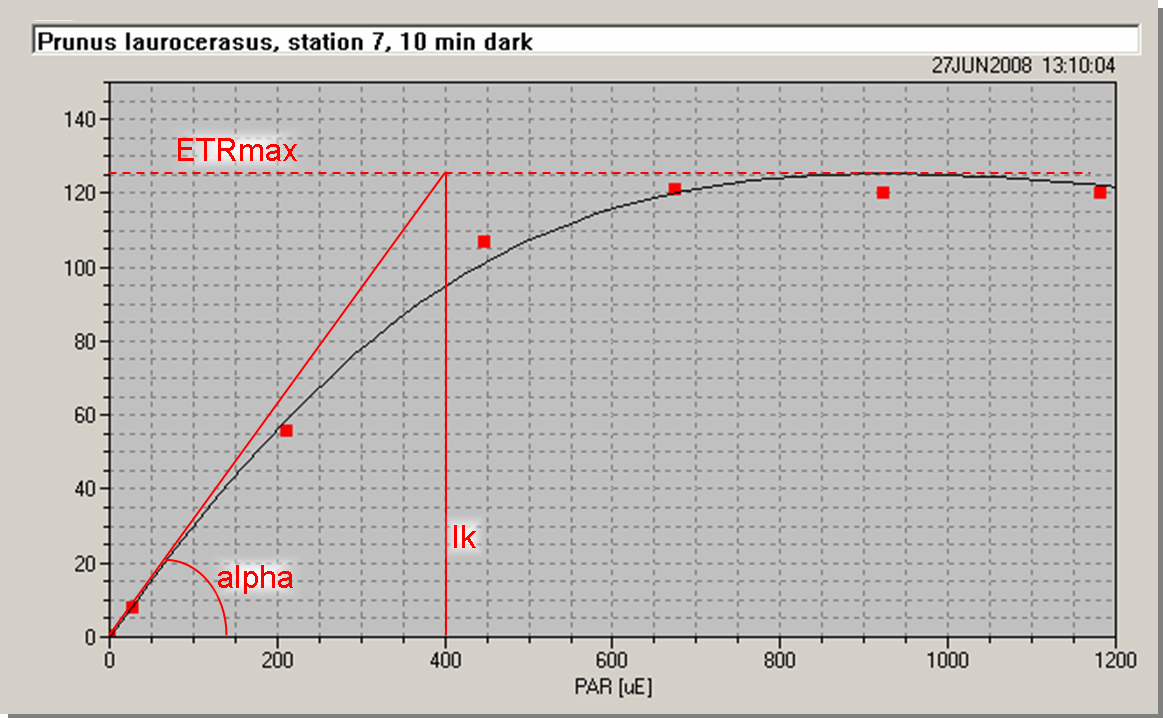

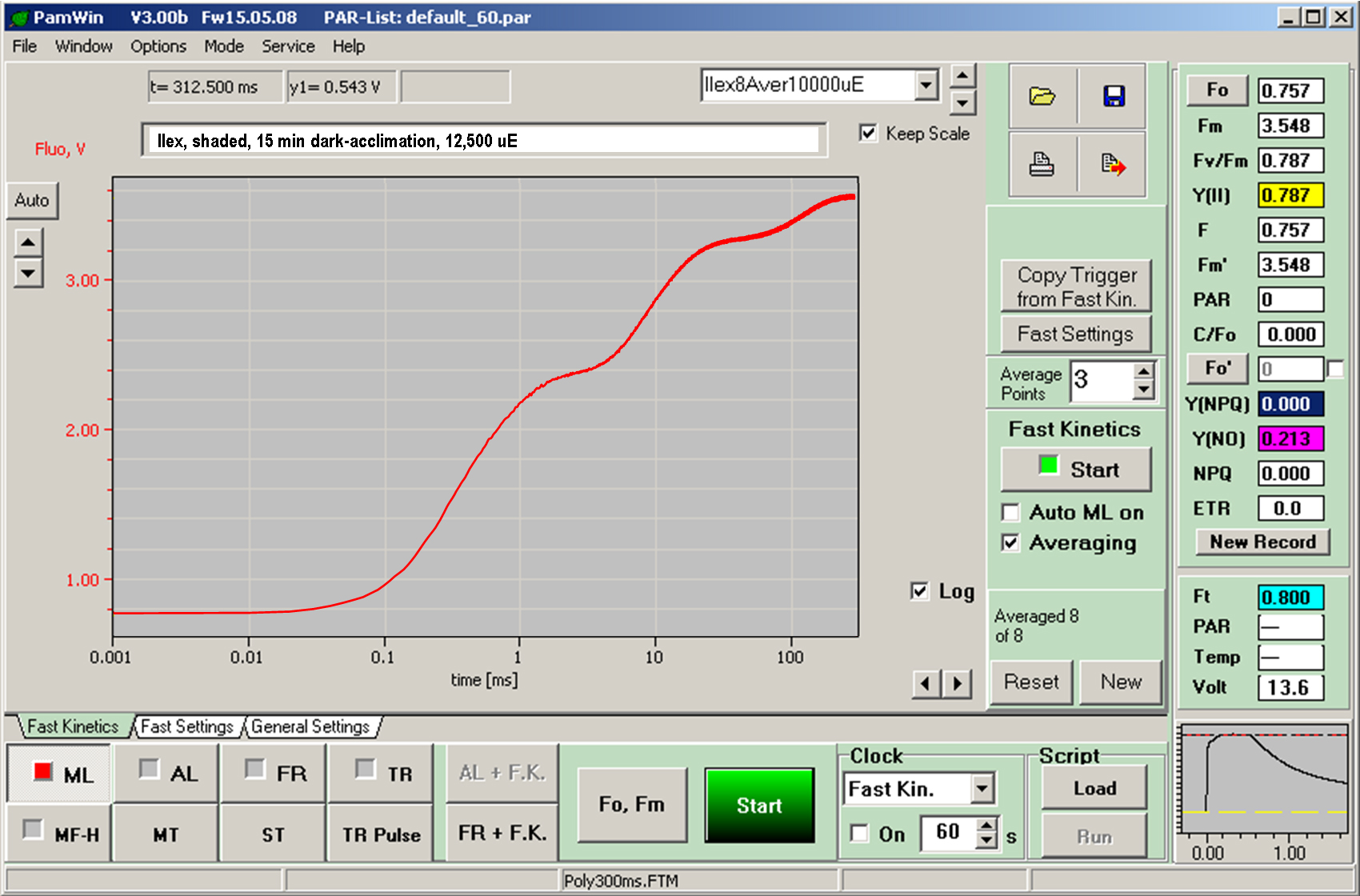

快速動力學顯示界面 | 快速光曲線結果顯示界面 |
三、其他可選附件
90 度角光纖適配器:2030-B90
安裝在 2030-B 或 2060-B 上,使光纖與樣品成 90 度角
微型光量子/溫度傳感器:2065-M
測量 PAR 和溫度,可連接 MINI-PAM 后獨立使用,多與 2060-B 結合使用。
大樣品表面光纖固定支架:2060-A
將光纖固定在較大樣品的表面(非葉片),與 2065-M 結合使用。
擬南芥葉夾:2060-B
60 度角光適應葉夾,與獨立微型光量子/溫度傳感器 2060-M 連用進行測量,特別適于測量擬南芥類小葉片。需配置 2060-M
產地:德國WALZ
參考文獻
數據來源:光合作用文獻 Endnote 數據庫,更新至 2021年 1 月,文獻數量超過 10000 篇
原始數據來源:Google Scholar
Ghorbani, A., et al. (2021). "Piriformospora indica augments arsenic tolerance in rice (Oryza sativa) by immobilizing arsenic in roots and improving iron translocation to shoots." Ecotoxicology and Environmental Safety 209: 111793.
Rusin, C., et al. (2021). "Control of the fungi Lasiodiplodia theobromae, the causal agent of dieback, in cv. syrah grapevines." 43.
Zhang, A., et al. (2021). "Using surfactants for controlling rotifer contamination in mass cultivation of Chlorella pyrenoidosa." Algal Research 53: 102166.
Andryei, B., et al. (2020). "Effect of plant growth promoting Rhizobacteria (PGPRS) on yield and quality of processing tomato under water deficiency." Acta Agraria Debreceniensis 2: 19-22.
Andrzejczak, O. A., et al. (2020). "The Hypoxic Proteome and Metabolome of Barley (Hordeum vulgare L.) with and without Phytoglobin Priming. ." Int. J. Mol. Sci(21): 1546.
Babaei, A., et al. (2020). "Photobiochemical changes in Chlorella g120 culture during trophic conversion (metabolic pathway shift) from heterotrophic to phototrophic growth regime." Journal of Applied Phycology.
Bergstrand, K.-J., et al. (2020). "Dynamics of nutrient availability in tomato production with organic fertilisers." Biological Agriculture & Horticulture: 1-13.
Chen, J.-H., et al. (2020). "Nuclear-encoded synthesis of the D1 subunit of photosystem II increases photosynthetic efficiency and crop yield." Nature Plants.
Cherono, S., et al. (2020). "Exogenous Application of Melatonin Improves Drought Tolerance in Coffee by Regulating Photosynthetic Efficiency and Oxidative Damage %J Journal of the American Society for Horticultural Science J. Amer. Soc. Hort. Sci." 1.
Darlison, J. (2020). "Microbial community dynamics in the phyllosphere of leafy vegetables." 學位論文Department of Biosystems and Technology, Swedish University of Agricultural Scienc: 92.
Dobretsov, S., et al. (2020). Impact of UV radiation on the red seaweed Gelidium lingulatum and its associated bacteria.
Fang, L., et al. (2020). "Plant Growth and Photosynthetic Characteristics of Soybean Seedlings Under Different LED Lighting Quality Conditions." Journal of Plant Growth Regulation: 1-11.
Fang, Z., et al. (2020). "Effects of fulvic acid on the photosynthetic and physiological characteristics of Paeonia ostii under drought stress." Plant Signal Behav: 1774714.
Feng, Y. and L. Cai (2020). "Research on the Regulatory Mechanism of Trehalose in Mentha Citrata’s Resistance to Drought." IOP Conference Series: Earth and Environmental Science 615: 012101.
Georgieva, K., et al. (2020). "Recovery of photosynthetic activity of resurrection plant Haberlea rhodopensis from drought- and freezing-induced desiccation." Photosynthetica.
Germ, M., et al. (2020). "Significant Accumulation of Iodine and Selenium in Chicory (Cichorium intybus L. var. foliosum Hegi) Leaves after Foliar Spraying." Plants 9(12): 1766.
Gomes, M. P., et al. (2020). "Individual and combined effects of amoxicillin, enrofloxacin, and oxytetracycline on Lemna minor physiology." Ecotoxicology and Environmental Safety 203: 111025.
Hallasgo, A. M., et al. (2020). "The Fungal Endophyte Serendipita williamsii Does Not Affect Phosphorus Status but Carbon and Nitrogen Dynamics in Arbuscular Mycorrhizal Tomato Plants." Fungi(6).
HORVáTH, K. Z., et al. (2020). "Effect of mycorrhizal inoculations on physiological traits and bioactive compounds of tomato under water scarcity in field conditions." Notulae Botanicae Horti Agrobotanici Cluj-Napoca 48(3).
Jia, Y., et al. (2020). " Response of Photosynthetic Performance to Drought Duration and Re-Watering in Maize." Agronomy 10(4): 533.
Kalmatskaya, O. A., et al. (2020). "Electron transport in Tradescantia leaves acclimated to high and low light: thermoluminescence, PAM-fluorometry, and EPR studies." Photosynthesis Research.
Ková?, D., et al. (2020). "Correction of PRI for carotenoid pigment pools improves photosynthesis estimation across different irradiance and temperature conditions." Remote Sensing of Environment 244: 111834.
Liang, Y., et al. (2020). "Selenium mitigates salt-induced oxidative stress in durum wheat (Triticum durum Desf.) seedlings by modulating chlorophyll fluorescence, osmolyte accumulation, and antioxidant system." 3 Biotech 10(8): 368.
Ma, G., et al. (2020). "Transcriptomic analysis of short-term heat stress response in Pinellia ternata provided novel insights into the improved thermotolerance by spermidine and melatonin." Ecotoxicology and Environmental Safety 202: 110877.
Masepan, N., et al. (2020). "Selecting Temperature for Screening Heat Tolerance in ‘Tavee 60’ Chili Seedlings."
Mousavi, S. R., et al. (2020). "Methyl jasmonate alleviates arsenic toxicity in rice." Plant Cell Reports.
Natalia Yu, G. (2020). "Studying Cyanobacteria by Means of Fluorescence Methods: A Review ": - Ch. 1.
Pandey, V. C., et al. (2020). "Physiological profiling of invasive plant species for ecological restoration of fly ash deposits." Urban Forestry & Urban Greening 54: 126773.
Piva, R., et al. (2020). "GROWTH AND PHYSIOLOGY OF YOUNG GRAPEVINES (CV. BRS CARMEM) UNDER ORGANIC AND BIODYNAMIC PRODUCTION SYSTEMS." Revista Brasileira de Agropecuária Sustentável 10(1).
Qiu, X., et al. (2020). "Effects of exogenous methyl jasmonate on the synthesis of endogenous jasmonates and the regulation of photosynthesis in citrus." n/a(n/a).
Ranglová, K., et al. (2020). "Growth, biostimulant and biopesticide activity of the MACC-1 Chlorella strain cultivated outdoors in inorganic medium and wastewater." Algal Research: 102136.
Ren, Y., et al. (2020). "Transcriptome analysis reveals that Populus tomentosa hybrid poplar 741 responds to blue light treatment by regulating growth-related genes and their metabolic pathways." Industrial Crops and Products 152: 112512.
Stratoulias, D. and V. R. Tóth (2020). "Photophysiology and Spectroscopy of Sun and Shade Leaves of Phragmites australis and the Effect on Patches of Different Densities." Remote Sensing 12(1): 200.
Urrea-Victoria, V., et al. (2020). "Sargassum stenophyllum (Fucales, Ochrophyta) responses to temperature short-term exposure: photosynthesis and chemical composition." Brazilian Journal of Botany.
Vanderlei Fregadolli, A., et al. (2020). "Evaluation of the injuries caused by Pachycoris torridus (Scopoli, 1772) (Hemiptera: Scutelleridae) in Jatropha curcas (Linnaeus) (Euphorbiaceae)1." Revista Ceres 67: 119-125.
Vastag, E., et al. (2020). "Magnolia grandiflora L. shows better responses to drought than Magnolia × soulangeana in urban environment." iForest - Biogeosciences and Forestry 13: 575-583.
Véliz, K., et al. (2020). "Geographic variation of UV stress tolerance in red seaweeds does not scale with latitude along the SE Pacific coast." n/a(n/a).
Wan, Y., et al. (2020). "Shade effects on growth, photosynthesis and chlorophyll fluorescence parameters of three Paeonia species." PeerJ 8: e9316.
WANG, S. W., et al. (2020). "Different responses of the halophyte Carex pumila to salt stress." 64(1): 519-528.
Xia, Z. and Y. Zheng (2020). "The physiological responses of Nouelia insignis towards drought and low temperature." PAKISTAN JOURNAL OF BOTANY 52.
XU, M. Y., et al. (2020). "Effects of light intensity on the growth, photosynthetic characteristics, and secondary metabolites of Eleutherococcus senticosus Harms." Photosynthetica 58(3): 881-889.
Yu, P., et al. (2020). "ATP Hydrolysis Determines Cold Tolerance by Regulating Available Energy for Glutathione Synthesis in Rice Seedling Plants." Rice (N Y) 13(1): 23.
Yue, J., et al. (2020). "The photoinhibition of camphor leaves (Cinnamomum camphora L.) by NaCl stress based on physiological, chloroplast structure and comparative proteomic analysis." PeerJ 8: e9443.
Zaiyou, J., et al. (2020). "Photosynthetic and Chlorophyll Fluorescence Characteristics of Isodon rubescens (Hemsley) H. Hara." Scientific Reports 10(1): 10043.
Zehra, A., et al. (2020). "Silicon-mediated cellular resilience mechanisms against copper toxicity and glandular trichomes protection for augmented artemisinin biosynthesis in Artemisia annua." Industrial Crops and Products 155: 112843.
Zhang, P., et al. (2020). "Beneficial Effects of Biochar-Based Organic Fertilizer on Nitrogen Assimilation, Antioxidant Capacities, and Photosynthesis of Sugar Beet (Beta vulgaris L.) under Saline-Alkaline Stress." Agronomy(10): 1562.
Zhang, X., et al. (2020). "Photosynthetic Properties of Miscanthus condensatus at Volcanically Devastated Sites on Miyake-jima Island." Plants(9): 1212.
Zhou, J., et al. (2020). "Bladder entrance of microplastic likely induces toxic effects in carnivorous macrophyte Utricularia aurea Lour." Environ Sci Pollut Res Int.
Zou, T., et al. (2020). "Effects of Different Spectra from LED on the Growth, Development and Reproduction of Arabidopsis thaliana." Phyton 89(2): 275--289.
