主要功能

• 可室內連電腦操作，可野外單機操作

• 野外長期連續監測多個樣品的光合作用變化

• 可測量熒光誘導曲線、快速光曲線（強大的曲線擬合功能）、淬滅分析、暗馳豫分析

• 野外數采 MONI-DA 可自動記錄數據，利用 microSD 卡存儲，利用太陽能或內置電池供電

• 所有野外部件均為防水設計

• 一臺 MONI-DA 可同時連接 1-7 個測量頭（推薦配置 3 或 4 個）

測量參數

Fo, Fm, F, Fo’, Fm’, Fv/Fm, Y(II), qP, qL, qN, NPQ, Y(NPQ), Y(NO), ETR, PAR 和溫度等

應用領域

長期連續監測植物的光合作用，或連電腦進行常規調制熒光測量。特別適合于長期生態學定位監測、農林氣象預報、指導灌溉決策，構建自動化溫室等領域。

選購指南

一，陸地版-離線版（兼具在線功能）

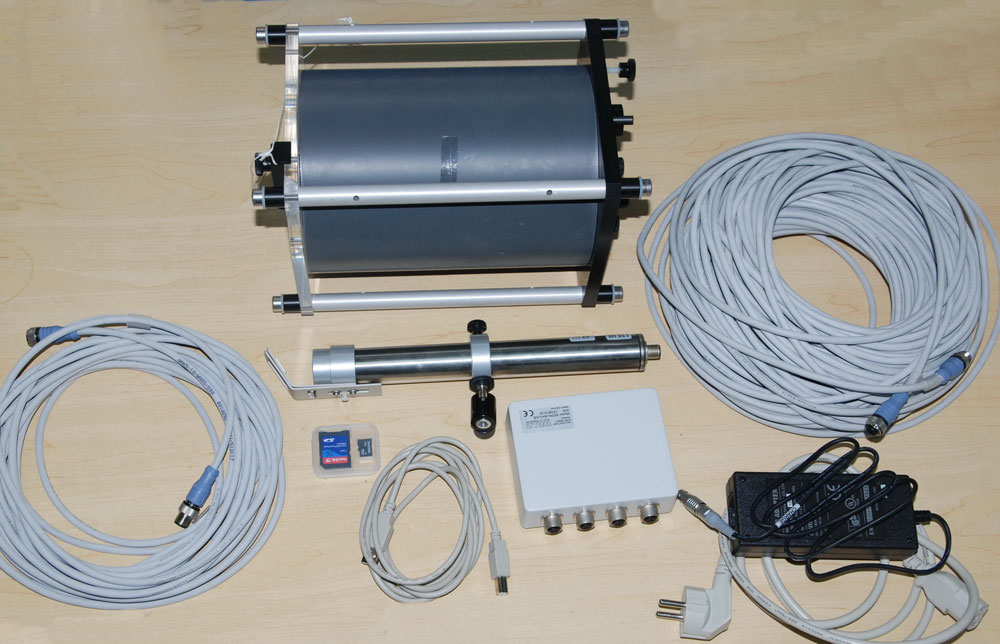

系統組成：數采（陸地版），電腦轉接盒，測量頭（陸地版），10m 線纜，軟件，電腦（標配不含）

注意：MONI-DA 可接 7 個測量頭，內存卡外置，方便取出下載數據

MONITORING-PAM 圖示

二，水下版-離線版（兼具在線功能）

系統組成：數采（水下版），電腦轉接盒，測量頭（陸地版），10m 線纜，軟件，電腦（標配不含）

注意：水下版配置與陸地版近似，只是數采，探頭以及所有線纜接口具備防水功能。MONI-DA/S 可接 7 個測量頭，內存卡內置，不可取出，用命令下載數據

三，陸地版-在線版

系統組成：電腦轉接盒，測量頭（陸地版），10m 線纜，軟件，電腦（標配不含）

注意：MONI-SET3，可接 3 個測量頭，MONI-SET4，可接 4 個測量頭

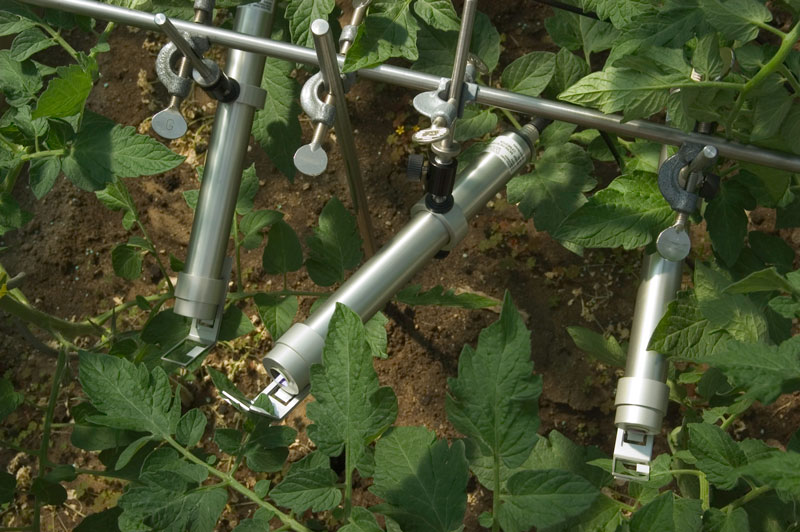

多探頭示例

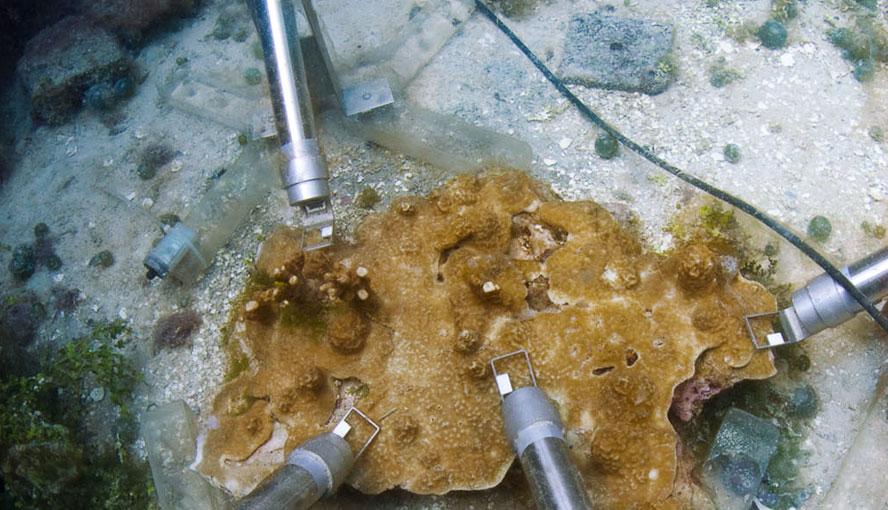

四，水下版-在線版

系統組成：電腦轉接盒，測量頭（水下版），10m 線纜（推薦），軟件，電腦（標配不含）

注意：MONI-SET3，可接 3 個測量頭，MONI-SET4，可接 4 個測量頭。水下版配置與陸地版近似，只是探頭以及所有線纜接口具備防水功能，但轉接盒并不防水。

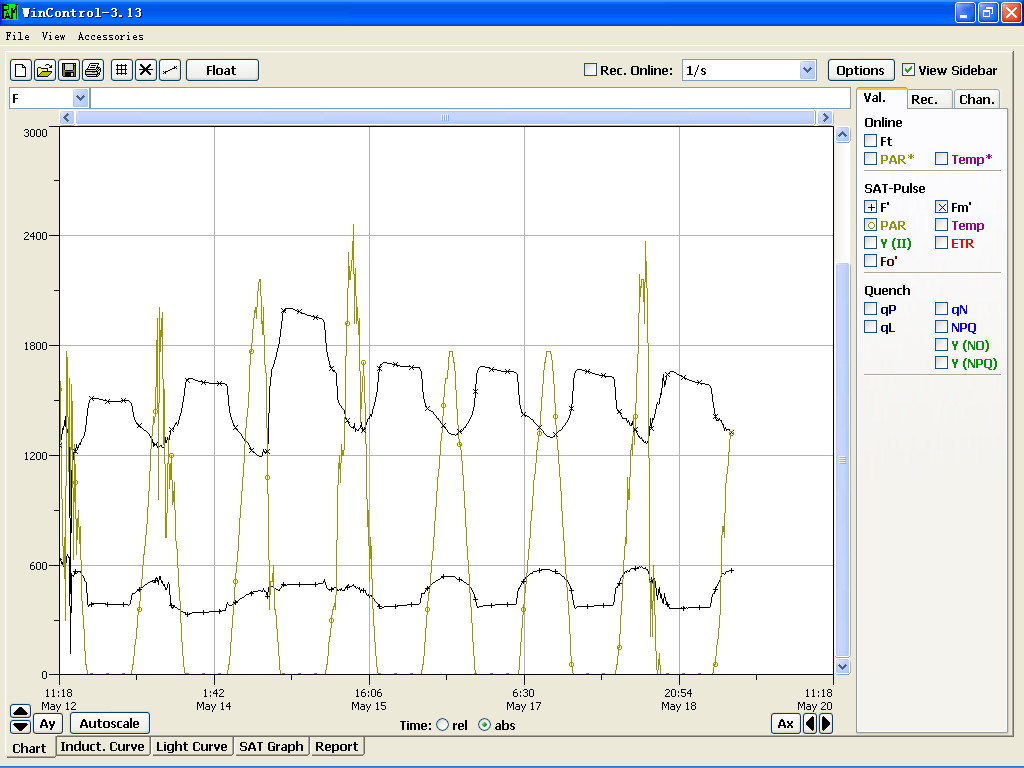

MONITORING-PAM 應用及測量結果

 產地：德國 WALZ

參考文獻

數據來源：光合作用文獻 Endnote 數據庫，更新至 2021 年 1 月，文獻數量超過 10000 篇

原始數據來源：Google Scholar

H. Wang et al., Structure and chlorophyll fluorescence of heteroblastic foliage affect first-year growth in Pinus massoniana Lamb. seedlings. Plant Physiology and Biochemistry 170, 206-217 (2022).

V. Zsom-Muha et al., An attempt to the nondestructive investigation of photo-induced potato postharvest quality degradation – Preliminary results. Progress in Agricultural Engineering Sciences,  (2021).

J. Quirós-Vargas et al., RESPONSE OF BEAN (PHASEOLUS VULGARIS L.) TO ELEVATED [CO2] IN YIELD, BIOMASS AND CHLOROPHYLL FLUORESCENCE. IGARSS,  (2021).

M. Li et al., Role of Suillus placidus in Improving the Drought Tolerance of Masson Pine (Pinus massoniana Lamb.) Seedlings. Plants 12, 332 (2021).

J. Kim et al., Solar-induced chlorophyll fluorescence is non-linearly related to canopy photosynthesis in a temperate evergreen needleleaf forest during the fall transition. Remote Sensing of Environment 258, 112362 (2021).

W. He, G. Yoo, Y. Ryu, Evaluation of effective quantum yields of photosystem II for CO2 leakage monitoring in carbon capture and storage sites. PeerJ 9, e10652 (2021).

H. He et al., Physiological Response to Short-Term Magnesium Deficiency in Banana Cultivars. Journal of Soil Science and Plant Nutrition,  (2021).

J. Han et al., The roles of photochemical and non-photochemical quenching in regulating photosynthesis depend on the phases of fluctuating light conditions. Tree Physiology,  (2021).

P. Campbell et al., Scaling photosynthetic function and CO2 dynamics from leaf to canopy level for maize – dataset combining diurnal and seasonal measurements of vegetation fluorescence, reflectance and vegetation indices with canopy gross ecosystem productivity. Data in Brief, 107600 (2021).

Andrzejczak, O. A., et al. (2020). "The Hypoxic Proteome and Metabolome of Barley (Hordeum vulgare L.) with and without Phytoglobin Priming. ." Int. J. Mol. Sci(21): 1546.

Casanova-Katny, A. and M. Barták (2020). "Thallus dehydration effects and physiological consequences in Antarctic lichens: Case study from the King George Island, Antarctica." BIOSCIENCES 10(1).

Yang, P., et al. (2020). "Unravelling the physical and physiological basis for the solar-induced chlorophyll fluorescence and photosynthesis relationship." Biogeosciences Discuss. 2020: 1-32.

Yu, W., et al. (2020). "Crop Photosynthetic Performance Monitoring Based on a Combined System of Measured and Modelled Chloroplast Electron Transport Rate in Greenhouse Tomato." Frontiers in Plant Science 11: 1-15.

Zhang, X., et al. (2020). "Photosynthetic Properties of Miscanthus condensatus at Volcanically Devastated Sites on Miyake-jima Island." Plants(9): 1212.

Zsom, T., et al. (2020). "Quality maintenance of broccoli by the use of 1-MCP treatments." Progress in Agricultural Engineering Sciences.

Campbell, P. K., et al. (2019). "Diurnal and Seasonal Variations in Chlorophyll Fluorescence Associated with Photosynthesis at Leaf and Canopy Scales." Remote Sensing 11(5): 488.
